23HS 2 Phase Hybrid Stepping motor

Phases: 2

Steps/Revolution: ±5%

Step Accuracy: 40N(9 Lbs.)Push

Radial: 70N(15.5 Lbs.)At End Shaft

IP Rating: 40

Operating Temp: -20℃ to +50℃

//www.baolongmotor.com/uploadfiles/128.1.164.27/webid501/source/202206/16546789838.jpg
  • Product Specifications
  • Quality Assurance
  • Application and Processing
  • Our Services

A hybrid stepper motor or a HB stepper motor is a combination of the features of the variable reluctance stepper motor and permanent magnet stepper motor. HB stepper motors are the easiest devices for precise positioning control. They are widely being used in various application for position and speed via all kinds of control signals such as digital, analog, communication etc. HB motors come in different types including the basic type, encoder type, IP65 type, brake type and geared type.


Phases2
Steps/Revolution±5%
Step Accuracy40N(9 Lbs.)Push
130N(30 Lbs.)Pull
Radial70N(15.5 Lbs.)At End Shaft
IP Rating40
Operating Temp -20℃ to +50℃
Insulation ClassB, 130℃
Insulation Resistance100 MegOhms


Electrical Specifications

Series
Model
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Lead
Wire
(No.)
Holding
Torque
(N.m)
Motor
Length L
(mm)
Rotor
Inertia
(g.cm²)
Motor
Weight
(Kg)
Step
Angle
(°)
23HS04050.62122840.55411500.471.8
23HS44252.512.20.8451900.52
23HS54252.51.13.21512300.59
23HS643030.72.41.1562800.68
23HS64044.20.41.21.1562800.68
23HS743030.82.31.5643800.85
23HS74044.20.451.21.5643800.85
23HS8430313.51.8764401.05
23HS84044.20.551.81.8764401.05
23HS143031.45.52.51006801.25
23HS14044.20.7532.51006801.25
23HS243031.56.82.81128001.4
23HS24044.20.83.82.81128001.4

*Note: We can manufacture products according to customer's requirements.

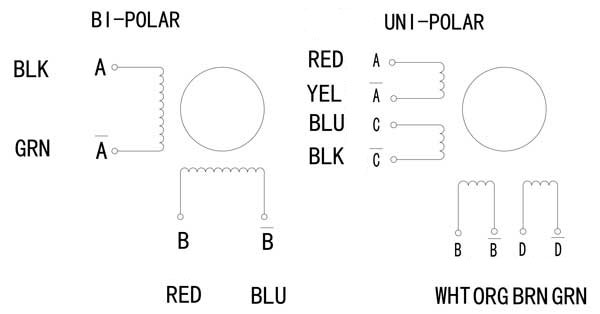

Wiring Diagram



Dimensions(Unit: mm)

nema 23 stepper motor Dimensions


Torque Curves

Pulse Rate Vs Torque Characteristics (Pull-out Torque)

23HS4425

23HS4425

23HS5425

23HS5425

23HS6430

23HS6430


23HS8404
23HS8404

23HS1404

23HS1404

23HS2404

23HS2404


Product Application

Baolong products are widely used in textile machinery, medical equipment, communication equipment, security systems, vehicle manufacturing, as well as robotics, logistics warehousing, industrial automation and other industries. Baolong's R&D team is always ready to meet the increasingly differentiated needs of the market.



Why do we use Brushless Motor?

Brushless motors offer high performance, good speed-torque characteristics, long life and low maintenance costs, making them ideal for manufacturing applications.
